Bearings

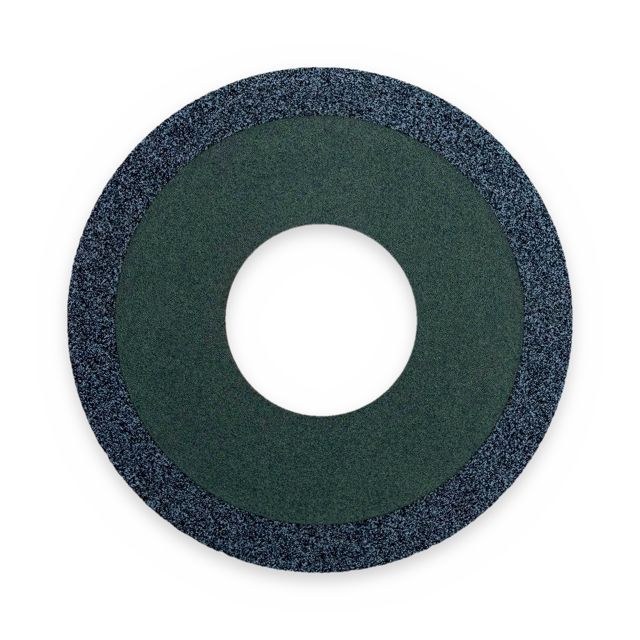

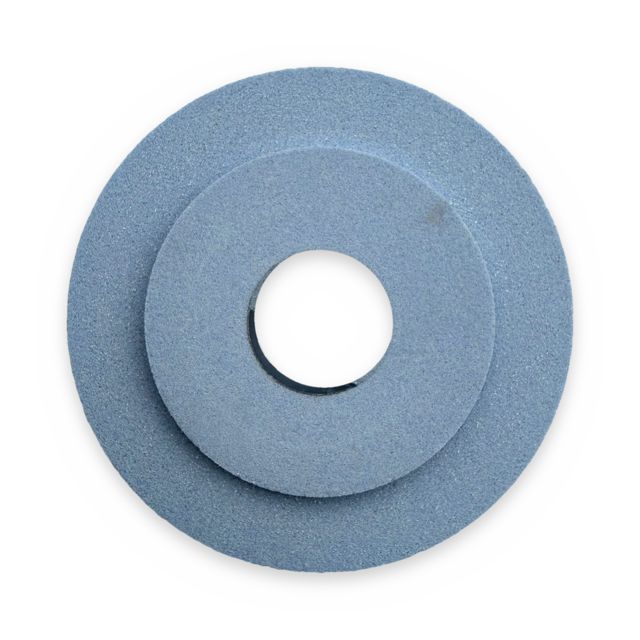

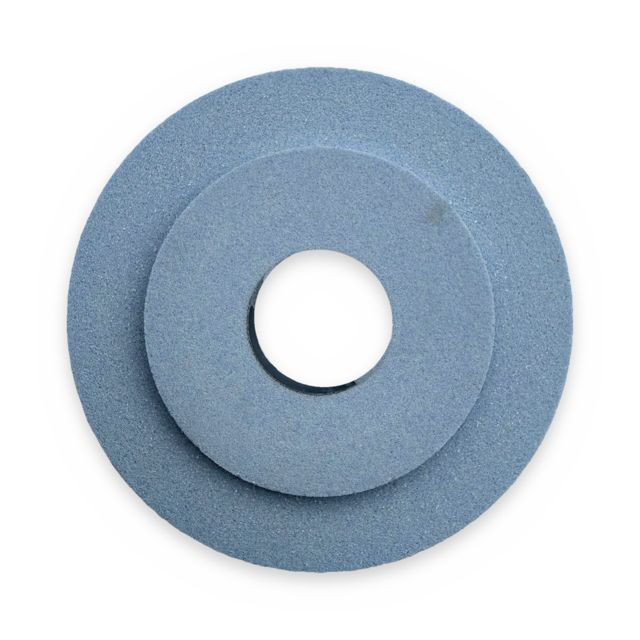

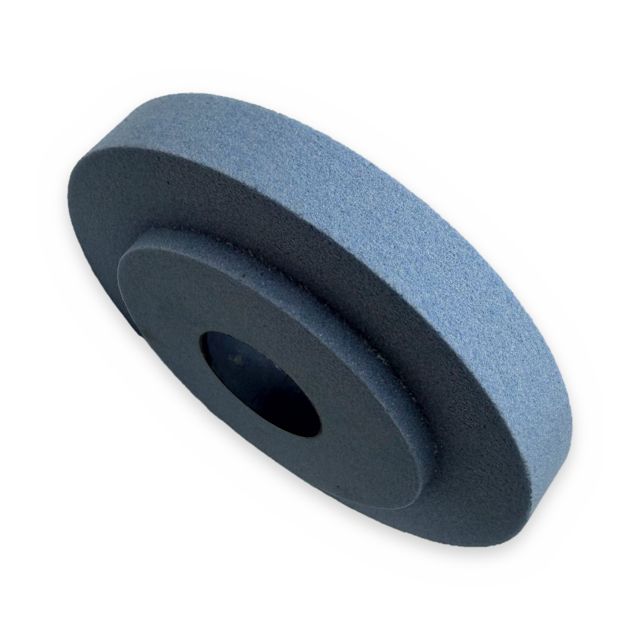

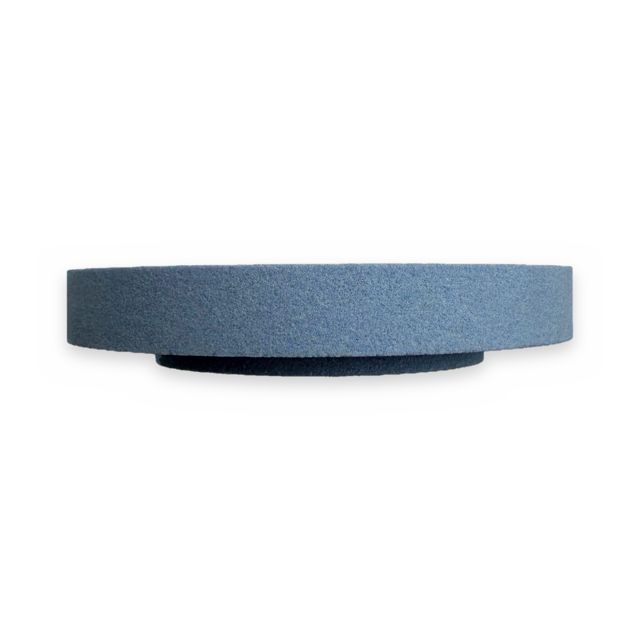

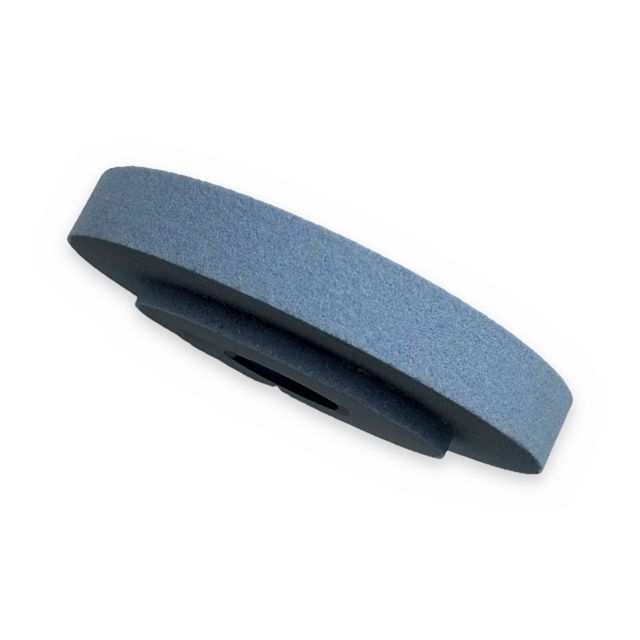

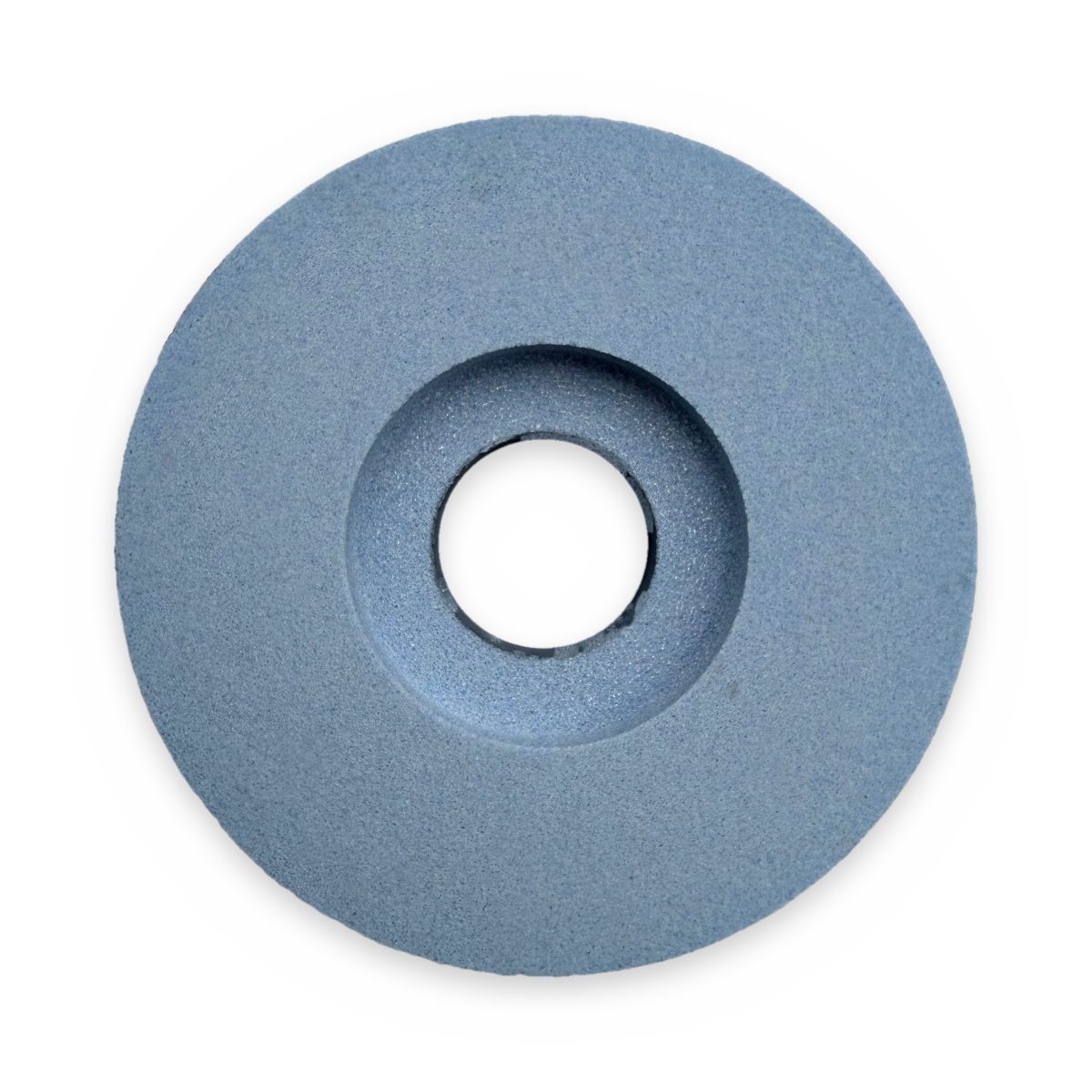

Rib (Flange) Grinding Wheels
Recessed and straight wheels for grinding the ribs (flanges) of bearing rings, where face run-out and surface finish directly affect roller guidance.
Wheel shape, recess and grade are matched to your machine and ring geometry.
Options
- Abrasive
- White fused alumina, SG ceramic alumina
- Bond
- Vitrified
- Shape
- Straight or recessed, made to drawing
- Finish
- Rough and fine grades available
Typical applications
- Tapered roller bearing cone ribs
- Cylindrical roller bearing ring ribs
- Hub bearing flange faces
For a fast quote, send us
- The marking on your current wheel (a photo of the label is fine)
- Wheel dimensions or a drawing
- Workpiece and material, machine model
- Your current wheel life and what you want to improve
